Model 8002 Signal Generator Specification

Printer Friendly Format

 Model 8002, 2-10 GHz
Model 8002, 2-10 GHz

Frequency

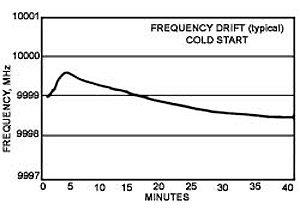

Range: 2 to 10 GHz Model 8002-MHz Graph
Click on graph to view larger version

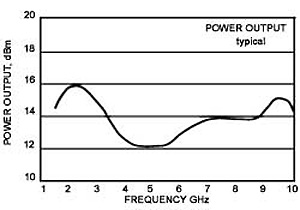

Model 8002-dBm Graph
Click on graph to view larger version
Resolution: 1 MHz
Accuracy: +/- 15 MHz1
Drift/temp: < 15 MHz
Drift/time: see graph at right
Switching speed: < 350 msec normal mode, full band2
< 25 msec fast mode

Spectral Purity
SSB phase noise: < - 80 dBc, (20 KHz offset)3
Harmonics: (Typical)

f (GHz) 2nd (dBc) 3rd (dBc)
2 - 3 -20 -20
3 - 4 -20 -20
4 - 5 -20 -18
5 - 6 -18 -28
6 - 7 -20 -30
7 - 10 -30 -35

Spurious: - 60 dBc   (Typical)

Power Output
Unleveled: > + 10 dBm (> + 13 typical)

Modulation (External FM modulation only)
FM • Rates....................... DC to 200 KHz
  • Deviations............... 0 to 20 MHz
  • Sensitivity................ 5 MHz / V
  • Input impedance.... 50 ohm

Remote Programming
TTL Compatible: 4 digit BCD, 1 latch control line, 25 pin female, D type connector

General
Power requirement: 120Vac, +/- 10%, 50 - 60 Hz, 10 watts
Dimensions: H 2.52, W 5.57, L 7.45 inches (6.4 x 14.2 x 18.9 cm)
Weight: 2.6 lbs. (1.1 kg.)
Operating temp: 0 to 40 degrees C.
Non-operating temp: - 20 to +70 degrees C.

1 25°C, hysteresis eliminated
2 to within 10 MHz of the final frequency
3 normal switching mode, SSB phase noise will be degraded in the fast switching mode.
